Ürün Bilgisi / Product information:
- Ürün Adı/Product Name: Filmterm NMN Prepreg
- Bileşim/Compound: It is mainly used in high frequency distribution transformers.
- Özellik/Feature: It is produced by laminating a film (36 to 100 µm) to two layers of resin-impregnated aramid paper (50/80 micron).
- Kalınlık/Thickness: Available in widths from 10 mm to 2000 mm.
Ürün Bilgisi / Product information:

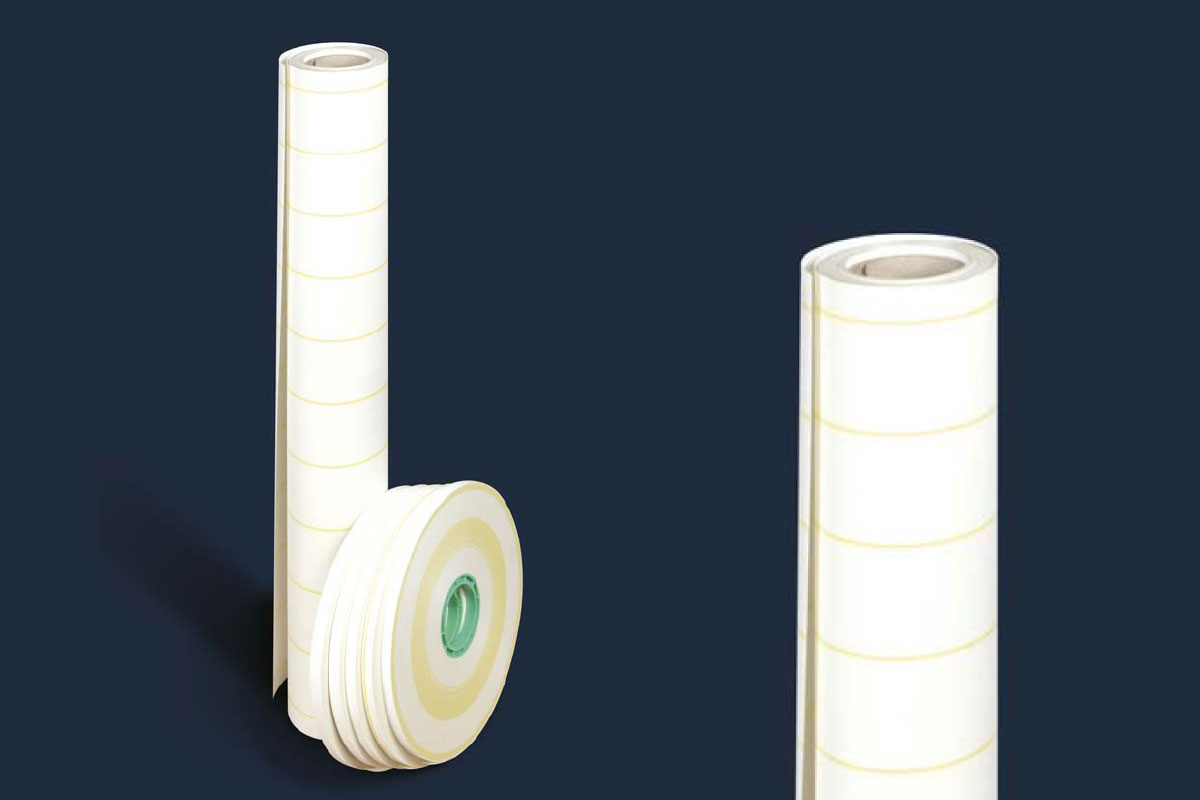

Filmterm NMN Prepreg
It is a three-layer flexible electrical insulation material. It is produced for use in heavy conditions of H class cast resin distribution transformers. Thermal class H (180oC). This product is available in widths from 10 mm to 2000 mm. It is cut in roll, sheet or length according to the customer’s request. It belongs to the NMN Prepreg Filmterm family. NMN Prepreg is produced by laminating a PET film (36 to 100 µm) to two layers of resin-impregnated aramid paper (50/80 micron). Epoxy resin is not completely cured during production, that is, it can be reactivated in suitable times in furnaces with suitable temperatures. It is mainly used in high frequency distribution transformers.
