Ürün Bilgisi / Product information:
- Ürün Adı/Product Name: Filmterm DMD HT
- Bileşim/Compound: It is impregnated with epoxy resin and conforms to ASTM D1830 standard.
- Özellik/Feature: The product is used as a spacer at the edges of low voltage windings.
- Kalınlık/Thickness: Available in widths from 500 mm to 2000 mm.
Ürün Bilgisi / Product information:

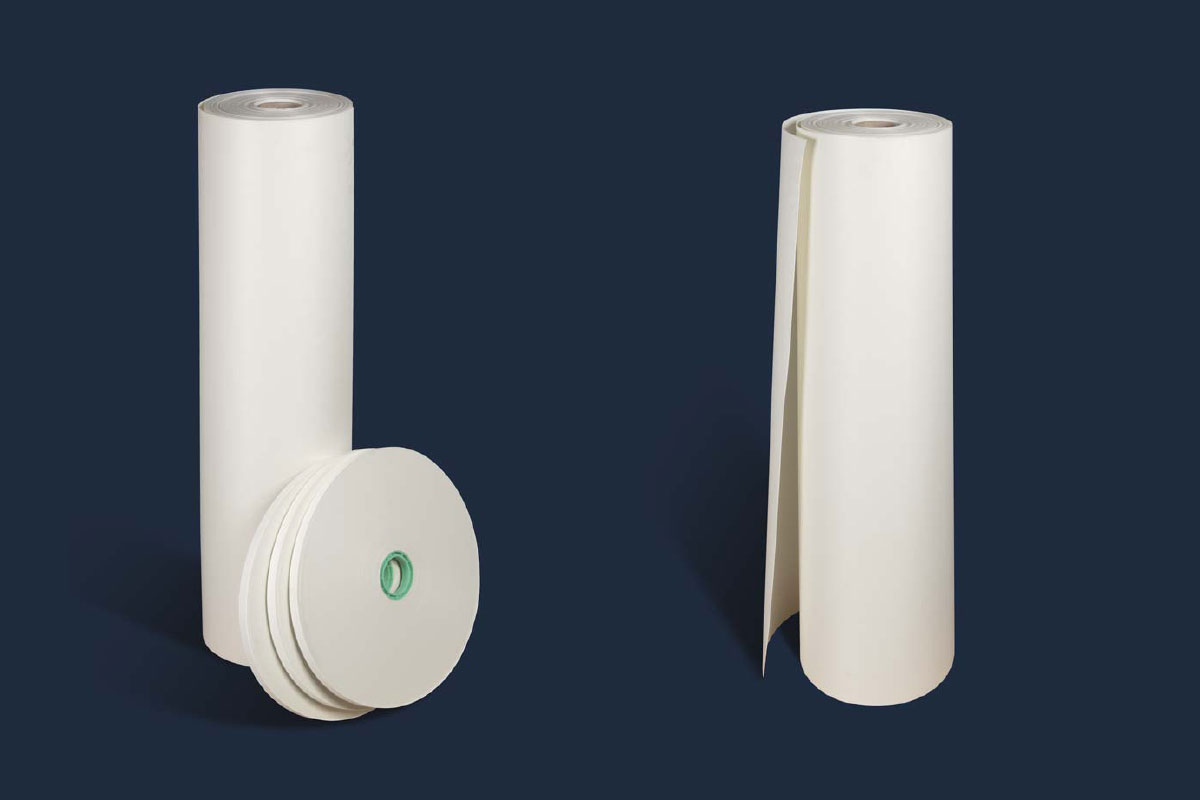

Filmterm DMD HT
Three layers of flexible insulation laminated; It is used in F class transformers between the secondary coil and distribution coil (155°C). This product is available in widths from 500 mm to 2000 mm. Rolls, sheets or lengths are cut according to demand. DMD HT belongs to the Filmcutter Filmterm family. The product is used as a spacer at the edges of low voltage windings. It is suitable for use with distribution transformers and electric motors in F (155°C) class. DMD HT is made by laminating several PET films onto two layers of PET nonwovens. It is impregnated with epoxy resin and conforms to ASTM D1830 standard.
