Ürün Bilgisi / Product information:
- Ürün Adı/Product Name: Filmterm Bant PREGREG
- Bileşim/Compound: It is a four-layer flexible tape used for bandaging low/high voltage coils of cast resin transformers.
- Özellik/Feature: PET Film (23/350 micron) is two outer layers and PET nonwoven (50 micron). It is used for bandaging the windings of high voltage cast resin transformers.
- Kalınlık/Thickness: It can be supplied in widths from 500 mm to 2000 mm.
Ürün Bilgisi / Product information:

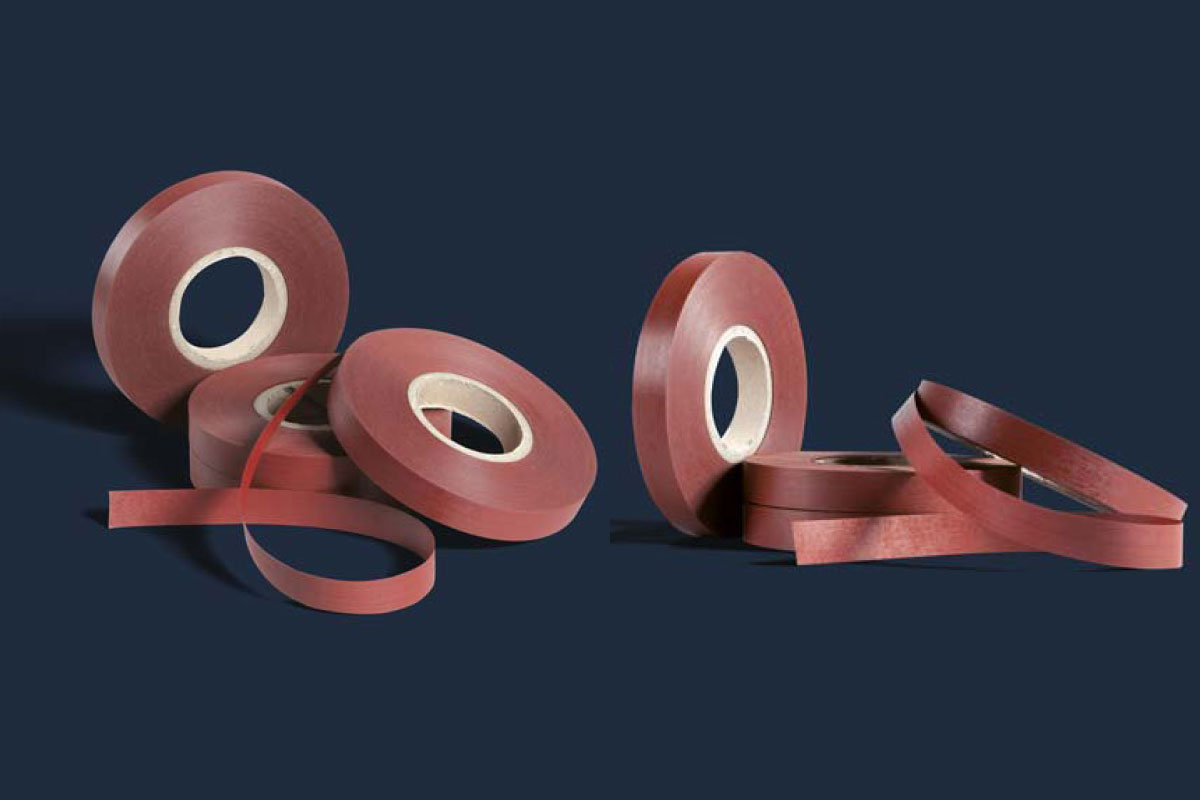

Filmterm Bant PREGREG
It is a four-layer flexible tape used for bandaging low/high voltage coils of cast resin transformers. Thermal class F(155 °C). The product can be supplied in widths from 500 mm to 2000 mm. It is cut in roll, sheet or length according to the customer’s request. Core inner diameter is 76 mm or 152 mm (3 or 6 inches), outer diameter is approximately 220 mm. PET Film (23/350 micron) is two outer layers and PET nonwoven (50 micron). It is used for bandaging the windings of high voltage cast resin transformers.
