Ürün Bilgisi / Product information:

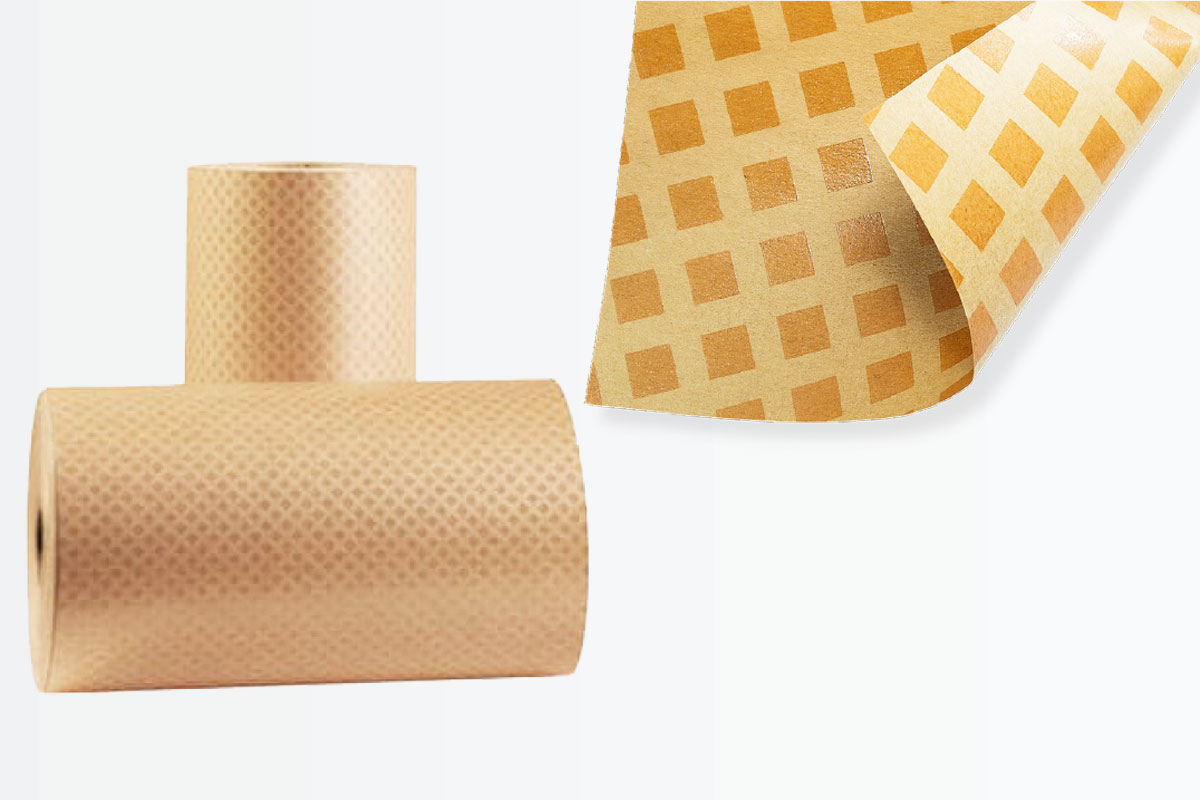

- Ürün Adı/Product Name: Diamond Dotted Paper (DDP)
- Bileşim/Compound: It is formed by coating B stage epoxy resin on both sides of DDP Kraft or Presspaper.
- Özellik/Feature: In addition to DDP Kraft and Presspaper, it has high adhesion. Thanks to its high tensile strength and flexural strength, it is suitable for use in automatic winding machines. It can also be impregnated with oil in a short time.
- Kalınlık/Thickness: 0.08, 0.13, 0.18, 0.25 mm
Ürün Bilgisi / Product information:
Diamond Dotted Paper (DDP)
It is made of insulation press paper and partially coated with epoxy resin on one or both sides and dried. The advantage of partially coated insulating press paper lies in strengthening the coil internally without sticking to the conductor; this provides passage for rapid evacuation of air and moisture during the drying process. Partial discharge also minimizes the risk of rapid impregnation and oil flow through the channels. The bond strength of the epoxy resin is sufficient to prevent displacement of the winding layers due to short-circuit forces.
